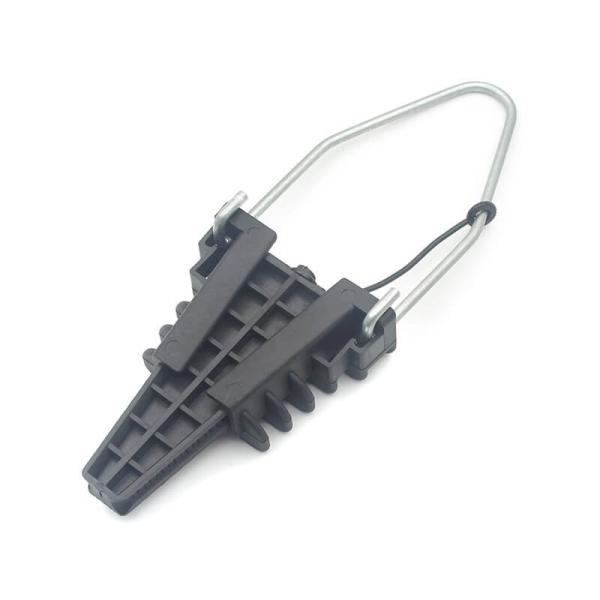

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

Name: Black 2 Wires Insulating Dead End Clamp Wedeg Shaped
Brand: DOWELL
Price: 1 USD

Buy cheap Black 2 Wires Insulating Dead End Clamp Wedeg Shaped product

Place of Origin : Zhejiang, China

Brand Name : DOWELL

Model Number : DW-2-25

Packaging Details : Normal Package

Supply Ability : 10000 PCS Per 7 Days

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Size : 220.5 x 75 x 27mm

Weight : 108g

Color : Black

Breaking Load : 2kN

Contact Now

Black 2 Wires Insulating Dead End Clamp Wedeg Shaped

The anchoring clamp is designed to anchor LV ABC lines with insulated neutral messenger. The flexible bail is equipped with a movable insulating saddle and the two sleeves are compressed on the ends and locked on the clamp body. A pair of wedges grips the cable automatically within the conical body. The installation does not require any specific tools and the operating time is drastically reduced.

Specification

Body and Wedge Material	Weather and UV resistance thermoplastic	Bail Material	Galvanized steel or stainless steel
Conductor Range	16-25mm²	Breaking Load	2kN
Impulse Withstand Voltage	6kV/min	Color	Black
Size	220.5 x 75 x 27mm	Weight	108g

Application

Dimension

Our Package

Production Flow
